Store home > Networking > Converters > Media > 10-/100-Mbps Hardened Media Converter Switch
LBH100AE-H-SLC: Single-Mode, LC, 100–240 VAC, 15km

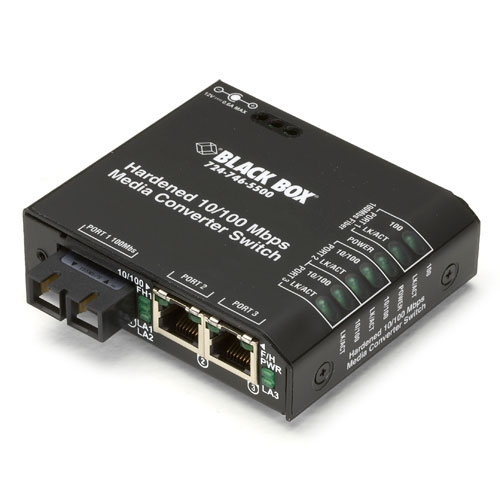

Photo may vary from actual product


10-/100-Mbps Hardened Media Converter Switch


Switch and convert 10/-100-Mbps copper to 100-Mbps fibre in industrial environments


  • Function as both a media converter and a switch.
  • Suitable for dusty or dirty environments with a temperature range between -25 to +60º C.
  • Provide one 100-Mbps fibre port and two 10-/100-Mbps UTP switch ports.
  • RJ-45 ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.
  • ST, SC, MT-RJ, and LC fibre port types available.
  • Support both half- and full-duplex operation.
  • Two sets of LEDs enable you to see status information from the front, top, or side.
  • Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray (sold separately).

  Product       Code   Unit price   Quantity
Single-Mode
LC
100–240 VAC

15km
  10-/100-Mbps, Hardened Media Converter Switch
10-/100-Mbps, Hardened Media Converter Switch
  LBH100AE-H-SLC Last Time Buy
"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.

Accessories

  Product     Code   Unit price   Quantity

  DIN Rail Power Supplies - 48VDC, 120w
DIN Rail Power Supplies
  SDR-120-48
  DIN Rail Power Supplies - 48VDC, 240w
DIN Rail Power Supplies
  SDR-240-48
  DIN Rail Power Supplies - 24VDC, 120w
DIN Rail Power Supplies
  SDR-120-24

BLACK BOX® Hardened Media Converter Switches do more than just adapt from one cable type to another. They’re true Ethernet switches and behave like switches within Ethernet networks—especially those situated in or near harsh industrial areas. This means you can connect them together indefinitely without worrying about interrepeater links.

Each Media Converter Switch features non-blocking switching architecture with a 2K MAC address table. The 128K buffer memory makes it easy to interconnect 10- and 100-Mbps devices.

Tough enough for the factory floor!
Hardened Media Converter Switches are for dusty or dirty environments with temperatures that range between -25 to +60º C. They use the metal case as a heat sink so no internal airflow is needed for cooling. The case is sealed to resist environmental contaminants such as dust, dirt, moisture, smoke, and insects. They’re an ideal choice for demanding industrial applications such as factory floors.

Media Converter Switches are also available in Standard versions for office or wiring closet environments and Extreme versions for outdoor environments. Because all three types work together seamlessly, you can use inexpensive Standard Media Converter Switches in the protection of the wiring closet and choose the more robust Hardened or Extreme Media Converter Switches for harsh locations at your network’s edge.

Distance isn’t a problem
Because they’re switches as well as media converters, Media Converter Switches provide more options in network topology, overcoming the distance limitations inherent with simple media converters—to add extra distance, just daisychain another Media Converter Switch. If you need more ports at your remote location, just add a BLACK BOX® Convenient Switch (LB101HA family).

Multimode models support up to 2 kilometres between Hardened Media Converter Switches. For longer distances, choose single-mode models for up to 20 kilometres or single-mode, long-distance models for an incredible 40 kilometres between links.

The features you’re looking for
Media Converter Switches are super simple to set up and use—just plug and go! Both copper ports are autosensing for speed and duplex, adjusting to the connected device automatically. Plus, the UTP ports feature Auto MDI/MDIX, eliminating the need for crossover cables.

Media Converter Switches each have two full sets of LED indicators: one set on the front for viewing convenience when the Media Converter is DIN rail or wallmounted, and one set mounted in the end next to the media ports for easy viewing when units are in a rackmount tray.

Mounting options galore
Media Converter Switches fit in where you need them. They come with neat, removable rubber feet so you can use them as standalone units. Or you can easily panelmount them with the included brackets and screws.

For use with DIN rails, order the optional DIN Rail Mounting Bracket. This handy bracket features springmounting, enabling you to easily pop your Media Converter Switches on and off the DIN rail without using a screwdriver or tightening set screws. DIN-rail-ready Media Converter Switches are also available.

For rackmounting in a central location, choose the optional Rackmount Tray or Powered Rackmount Tray. The powered tray provides power for up to eight units.
