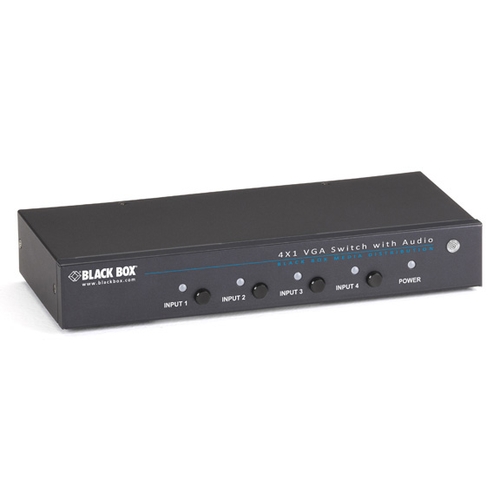

Use these low-priced, highly reliable VGA Switches with Serial and Audio anywhere you need to route both video and audio from up to eight PC sources to a common display.
They're ideal for classrooms, control centres, and digital signage applications as well as for use at meetings and seminars where you need to switch between multiple sources for output on a VGA monitor or through a VGA projector.
Resolutions (Maximum) — Full HD 1080p (1920 x 1080), WUXGA (1920 x 1200), 1920 x 1440

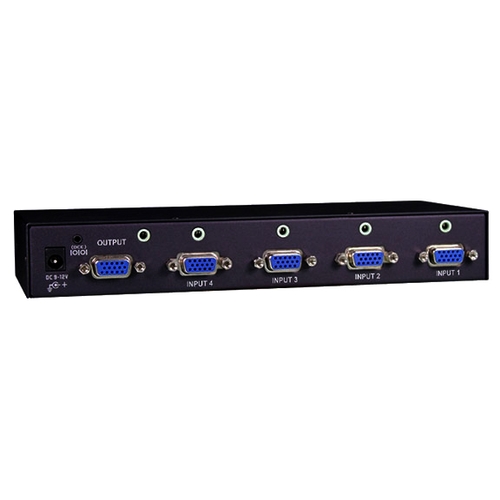

Connectors — AVSW-VGA4X1A: Input: (4) HD15 M (VGA), (4) 3.5-mm jack (audio), (1) 1.7-mm DCE jack (serial, for use with included adapter);
Output: (1) HD15 F (VGA), (1) 3.5-mm jack (audio);
AVSW-VGA8X1A:[i/] Input: (8) HD15 M (VGA), (8) 3.5-mm jack (audio), (1) 1.7-mm DCE jack (serial, for use with included adapter);
Output: (1) HD15 F (VGA), (1) 3.5-mm jack (audio)
Indicators — [i]AVSW-VGA4X1A: (4) LEDs: (1) per port (for active status of VGA input source);
AVSW-VGA8X1A: (8) LEDs: (1) per port (for active status of VGA input source)
Power — Input: 100–240 VAC, 50–60 Hz;
Output: 9–12 VDC;
Consumption: 4.5 W
Dimensions — 3.4H x 22W x 10D cm
Weight — 0.7 kg
(1) VGA Switch with Serial and Audio
(1) IR remote control
(1) Power supply
(4) Rubber feet
(1) Serial DB9 to 1.7mm barrel adapter
(2) Rackmount ears with screws
(1) User manual
